Introduction

The STM32 Nucleo Adapter Card is designed for effortless integration with the Nucleo-144 form factor board. Featuring 144 pin headers, it connects seamlessly to the STM32 Nucleo board without the need for any hardware modifications. Furthermore, it includes a MikroBUS interface that facilitates peripheral expansion.

This guide outlines the process for configuring hardware and software setup for executing Wi-Fi functionality on the NUCLEO-H723ZG using FreeRTOS. The tutorial specifically focuses on the example related to IF573.

Hardware Setup

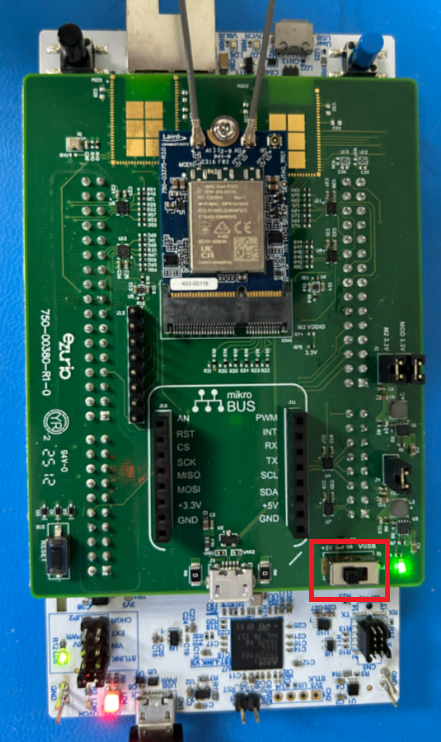

The image below shows the STM32 Nucleo Adapter Card with the IF573 positioned on top of the NUCLEO-H723ZG via Nucleo-144 adapter.

453-00119 (IF573, M2, SDIO) is plugged into M.2 slot.
Hardware Setup Placeholder

💡Info: Ensure that the power source is configured to +5V.

Prerequisites

The following software needs to be installed:

Updating Software

STM32CubeMX: Installing Updates

Launch STM32CubeMX:

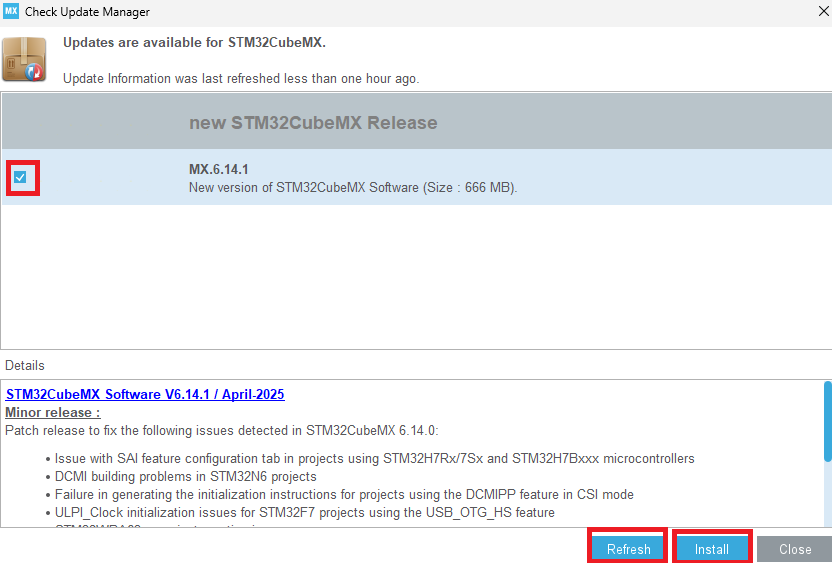

  1. Navigate to Help > Check for Updates.
  2. Refresh the list, select the new version, and click Install.
    STM32CubeMX Update Placeholder

Install STM32 Connectivity Expansion Pack v1.7.1

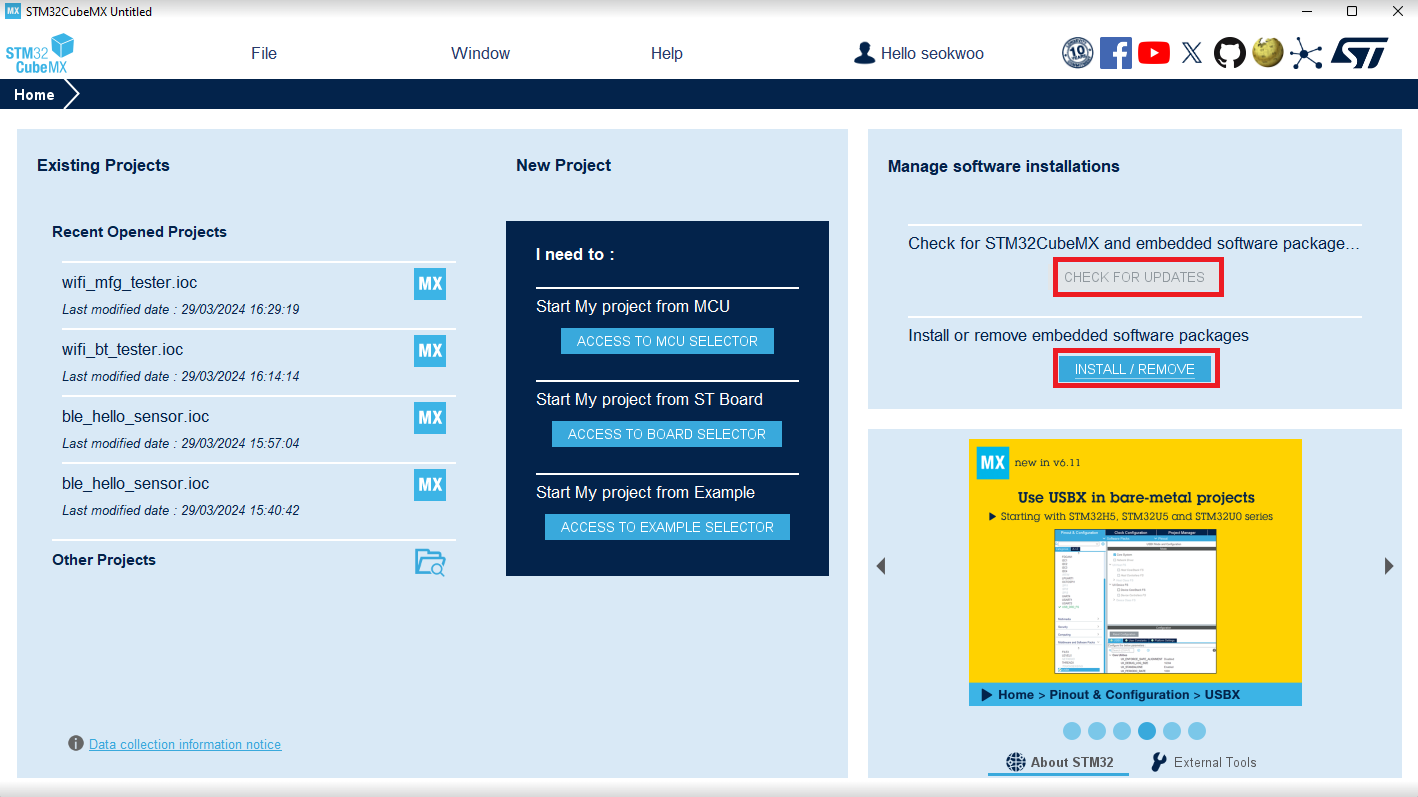

  1. Open STM32CubeMX and select Install/Remove under Manage Software Installation.
    Expansion Pack 1

  2. Click the Infineon tab, refresh, select version 1.7.0, and click Install.
    Expansion Pack 2

  3. Close STM32CubeMX.

Opening Project through STM32CubeMx

💡Info: Unlike the wifi_bt_tester app provided from the normal expansion pack, this app does not support iperf function to reduce the image size (.elf) to fit in 1MB flash on NUCLEO‑H723ZG.

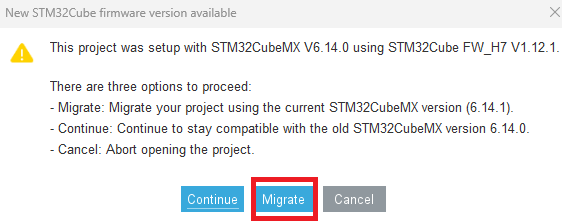

  • Double-click wifi_bt_tester_H723ZG.ioc to open it in STM32CubeMx. Select Migrate if prompted.
    Migrate

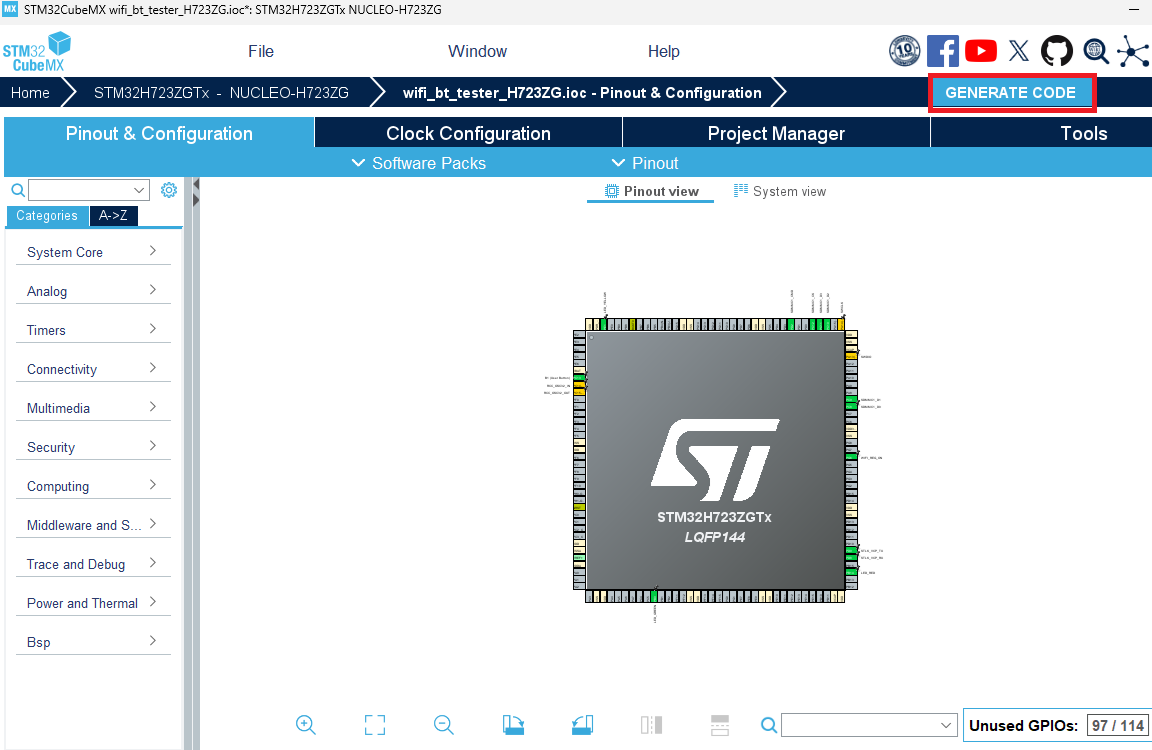

  • Click on Generate Code to proceed.
    Generate Code

Click on Open Project.
Open Project

Building Application in STM32CubeIDE

Modify source codes

  • Delete bt_cfg.c and bt_utility from:

    Middlewares > Connectivity > Wireless > MfgTools > command-console

    ![Delete BT files](images/delete-bt-files.png)

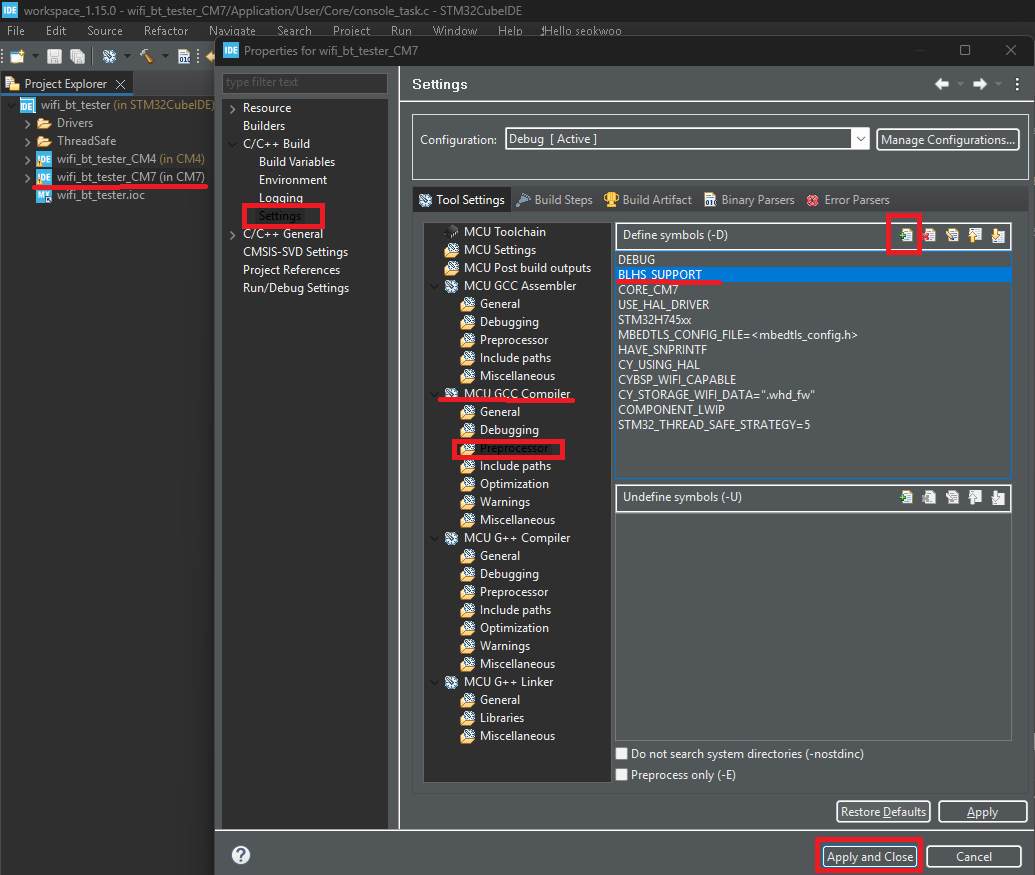

  • Under C/C++ Build > MCU GCC Compiler > Preprocessor, add macro:

    BLHS_SUPPORT


    Then, apply and close.

    BLHS_SUPPORT

  • In File Explorer, browse to MBEDTLS/App/mbedtls_config.h, and uncomment the following 2 parameters (line# 216, 1414):

    #MBEDTLS_PLATFORM_TIME_ALT
    #MBEDTLS_SSL_MAX_FRAGMENT_LENGTH


Build Application

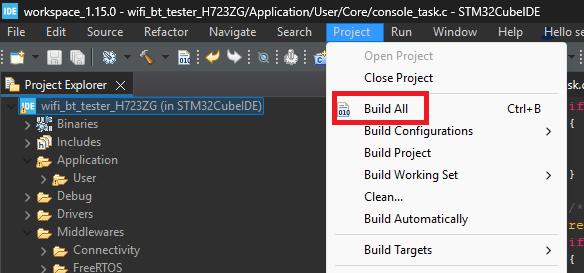

  • Build application (Project > Build All).
    Build Application

Flash Application

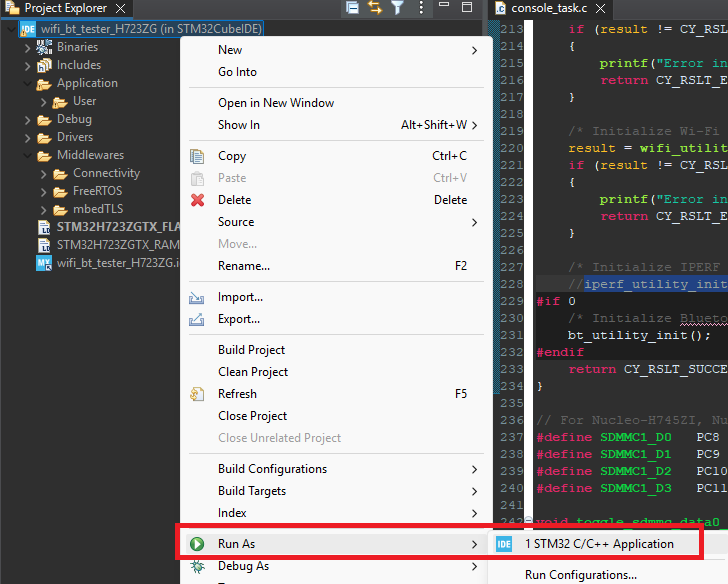

  • Right-click wifi_bt_tester, select Run As > STM32 C/C++ Application.
    Flash App

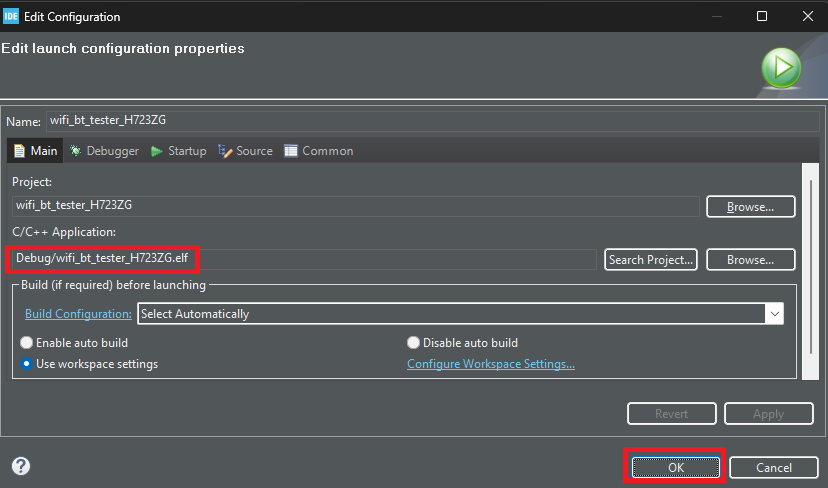

  • In Edit Configuration, confirm Debug/wifi_bt_tester.elf is selected, and click OK.
    Edit Config

Running Application

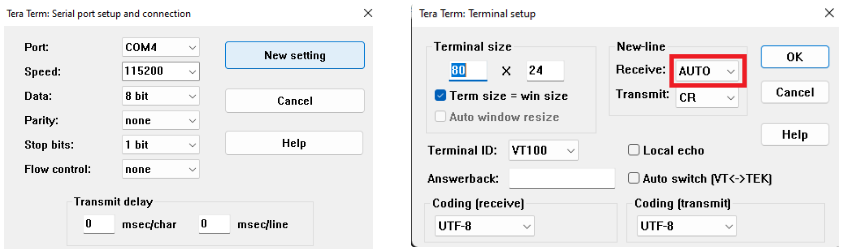

  • Configure serial port and new-line receive to AUTO.
    Teraterm config

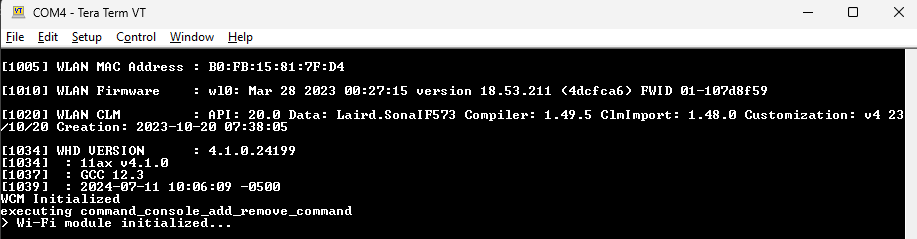

  • Power cycle the board; Wi-Fi module initializes.
    WiFi init

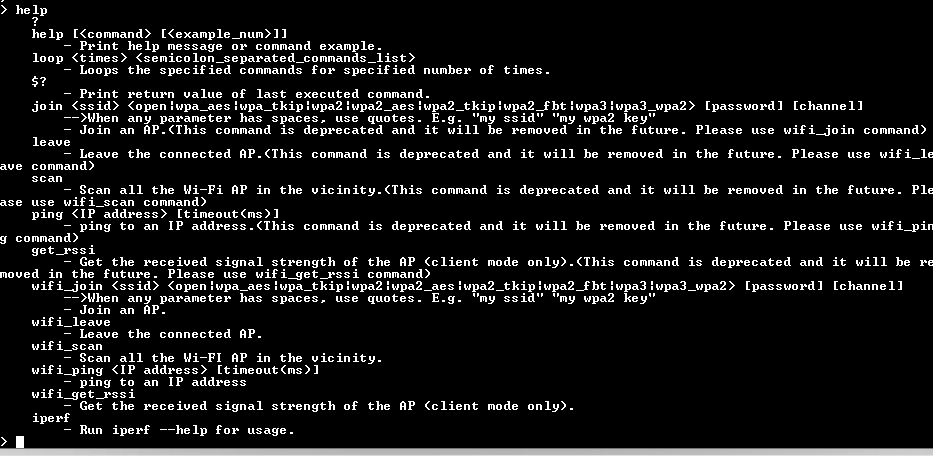

  • Type help to list all available commands.
    Help command

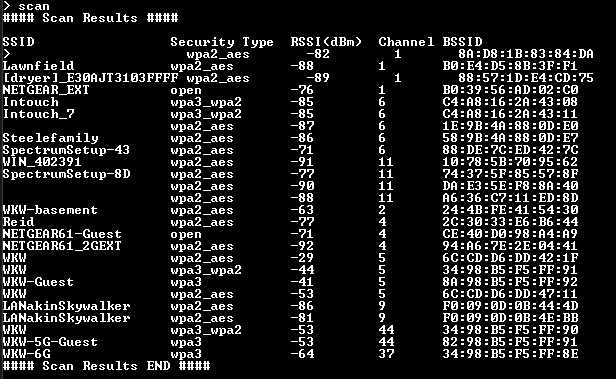

  • For example, scan command scans for Wi-Fi networks.
    Scan command
