60-SIPT/60-2230C

Introduction

Ezurio supports Wake on WLAN (WoW) for both Wi-Fi and Bluetooth with the 60 series products (60-SIPT and 60-2230C). This application note provides information on the Wi-Fi and Bluetooth pin definitions, instructions on how to probe these pins in the 60-SIPT and 60-2230C development kits, and software requirements and configuration.

Hardware

WoW PIN Definitions in the SiP

  • WoW for Wi-Fi - Pin 23 on the SiP
  • WoW for Bluetooth - Pin 67 on the SiP

You must wire each of these pins to a GPIO in the host processor and set it as input.

Pin Name Type Voltage Description
23 GPIO0 I/O VIO General purpose I/O pin. Reserved for Wake on WLAN feature.
67 LED_OUT_BT O,PU VIO LED indicator for Bluetooth with a 10-mA drive capability. N/C - Reserved for Bluetooth wake up host feature.

Wow Radio Development Kit PIN Locations

60-SIPT Development Kit

  • Wi-Fi WoW - The GPIO0 (SiP pin 23) can be probed without any modification of the development kit.
  • Bluetooth WoW – You must remove R35 and mount a 0-ohm resistor on R39. You can then attach the GPIO 3-pin in the development kit to the pin in the SiP.

Schematic

DVK

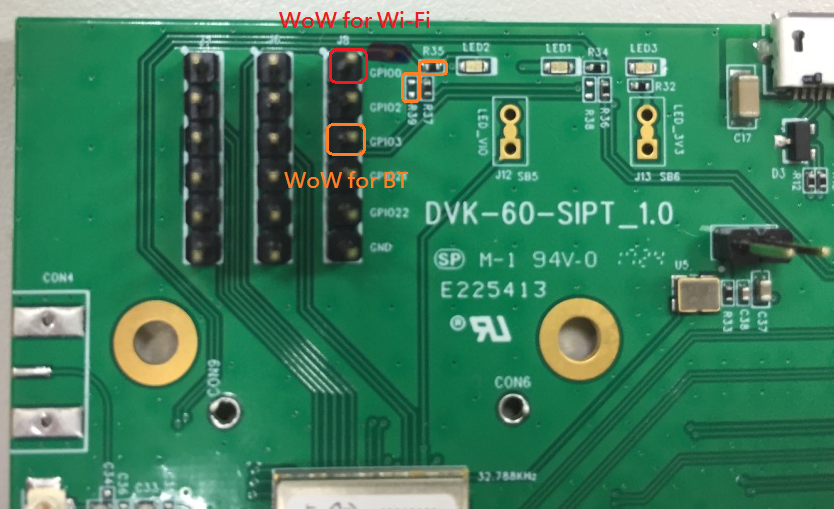

Wow location for Wi-Fi and BT on the 60-SIPT DVK

60-2230C Development Kit v1.0

  • Wi-Fi WoW – This pin can be probed at TP4 without any modification of the development kit.
  • Bluetooth WoW – There is currently no pinout for this pin. It will be added in the next generation of the development kit (v1.1).

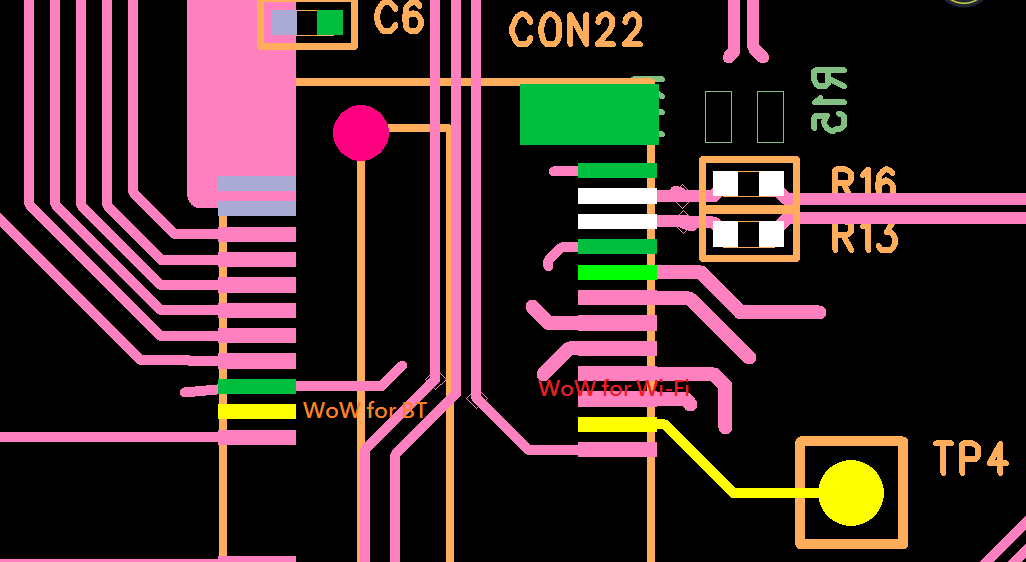

Schematic

DVK

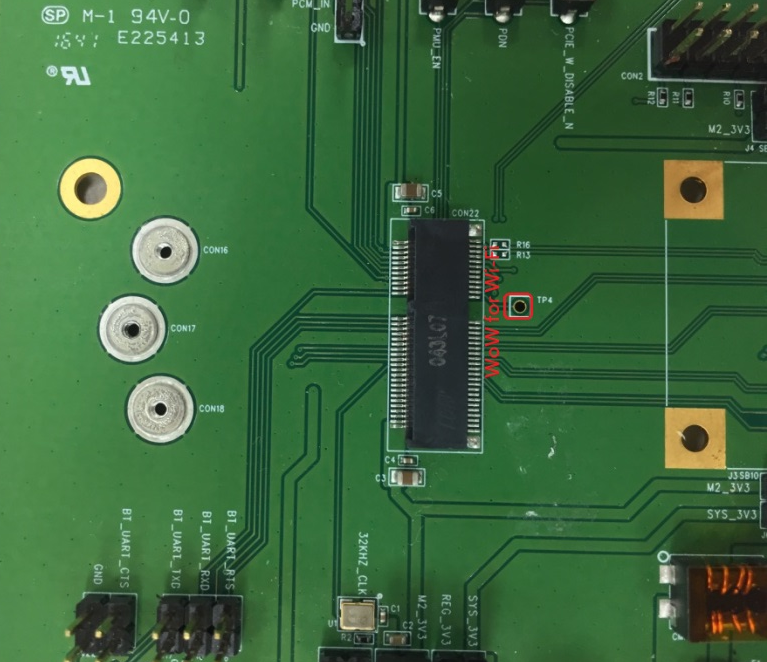

Wow location for Wi-Fi and BT on the 60-2230C DVK

Software

This section describes all software related requirements for Wake on Wireless to work with the 60 Series radios. All WoW signals emanating from the SIP are active low, and for Wi-Fi the pin assertion will last for approximately 1 second before reverting to its normal state.

The 60 Series host software supports the following bus interfaces:

Interface Wi-Fi Bluetooth Note
SDIO x x
PCIE
USB   x
UART   x

Host Requirements

In order for WoW to function properly, the host system must be able to maintain power to radio when the host processor is suspended.

The 60 series Wi-Fi driver will check that the SDIO host controller has the MMC_PM_KEEP_POWER capability set. If not set the radio driver will not report support for WoW, and will fail all suspend requests or attempts to set a WoW trigger.

Wi-Fi Configuration

The following netlink 802.11 WoW triggers are supported. These triggers may be configured at any time, however the 60 series Wi-Fi radio driver will only enable the trigger when it is notified that the host is actually suspending. Consequently one can’t simply configure a WoW trigger and expect the radio to assert the GPIO line when the trigger condition is met (e.g. disconnect) because the trigger may not be enabled.

  • NL80211_WOWLAN_TRIG_DISCONNECT - Loss of beacons
  • NL80211_WOWLAN_TRIG_ANY - Loss of beacons or RX of any unicast 802.11 packet
  • NL80211_WOWLAN_TRIG_NET_DETECT - Network detection

Note NL80211_WOWLAN_TRIG_NET_DETECT supports the full channel set, but only a single SSID, and no ‘Match’ support.

iw

The iw cli configuration utility may be used to display and change parameters of network interfaces that are specific to wireless operation. One may use iw to check for WoW support and to configure WoW parameters for the 802.11 radio.

To check Wi-Fi radio WoW support, use the following command:

iw phy0 info

...
   WoWLAN support:
        * wake up on anything (device continues operating normally)
        * wake up on disconnect
        * wake up on network detection, up to 0 match sets
...

If radio is associated before host is suspended, the following iw command may be used to wake the host if the connection is lost:

iw phy0 wowlan enable disconnect

If radio is associated before host is suspended, the following iw command may be used to wake the host if the connection is lost or an 802.11 unicast packet is received:

iw phy0 wowlan enable any

If radio is not associated before host is suspended, the following iw command may be used to wake the host when the network becomes available:

iw phy0 wowlan enable net-detect interval 5000 freqs 2412 5180 active ssid foobar

Note The interval is required to complete the NL80211_WOWLAN_TRIG_NET_DETECT request, but is not used as the scan interval by the radio.

Events

The following events are sent by the 60 series Wi-Fi radio driver in response to a WoW trigger occurrence.

  • NL80211_WOWLAN_TRIG_WAKEUP_PKT_80211 - RX of a unicast packet
  • NL80211_WOWLAN_TRIG_NET_DETECT_RESULT - Network detected
  • NL80211_WOWLAN_TRIG_DISCONNECT - Loss of beacons

BT Configuration

The following HCI Command is used to configure the GPIO that is used to wake the host.

hcitool cmd <OGF> <OCF> <WAKEUP METHOD> <GAP VALUE>
Param Value
OGF 0x3F
OCF 0x53 for UART, 0x59 for USB
WAKEUP METHOD 0x01 to 0xFE = GPIO number
GAP VALUE Time of GPIO pull-down, Default = 0x64 (100ms)

BT Uart:

hcitool -i hci0 cmd 0x3F 0x53 0x03 0x03 0x01 0xFF

BT Usb:

hcitool -i hci0 cmd 0x3F 0x59 0x03 0x03
